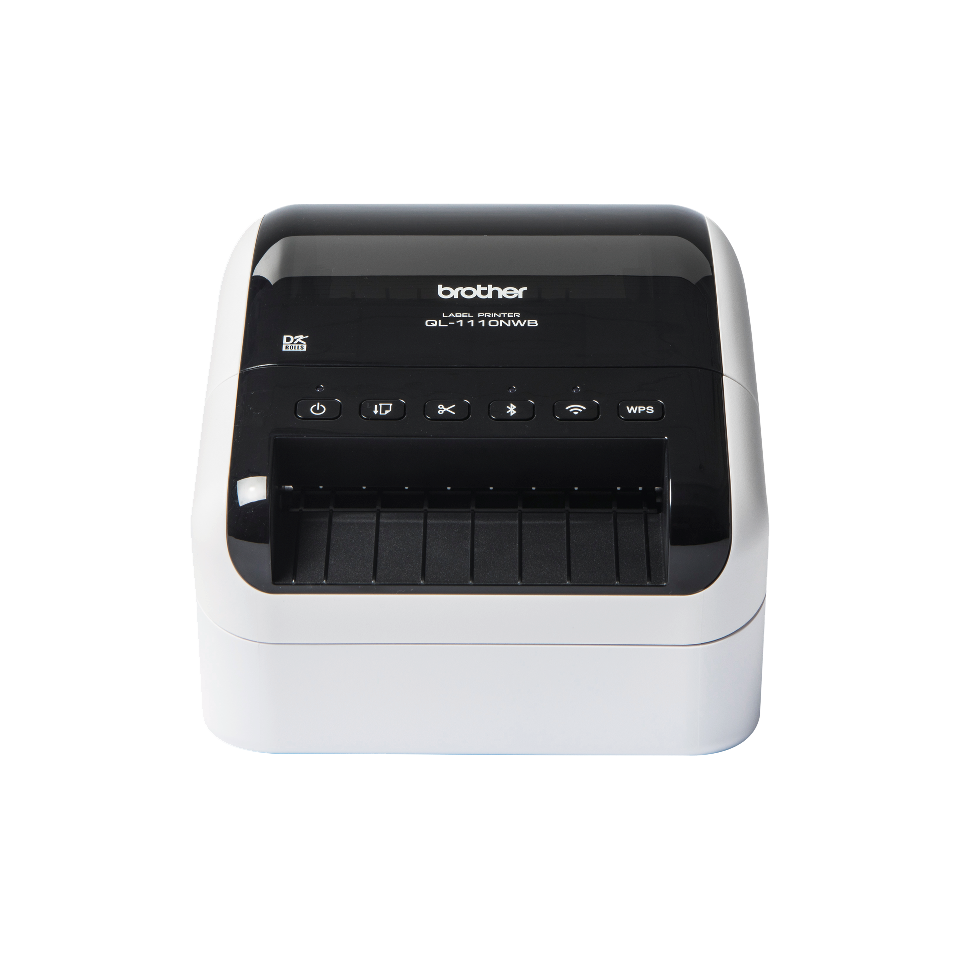

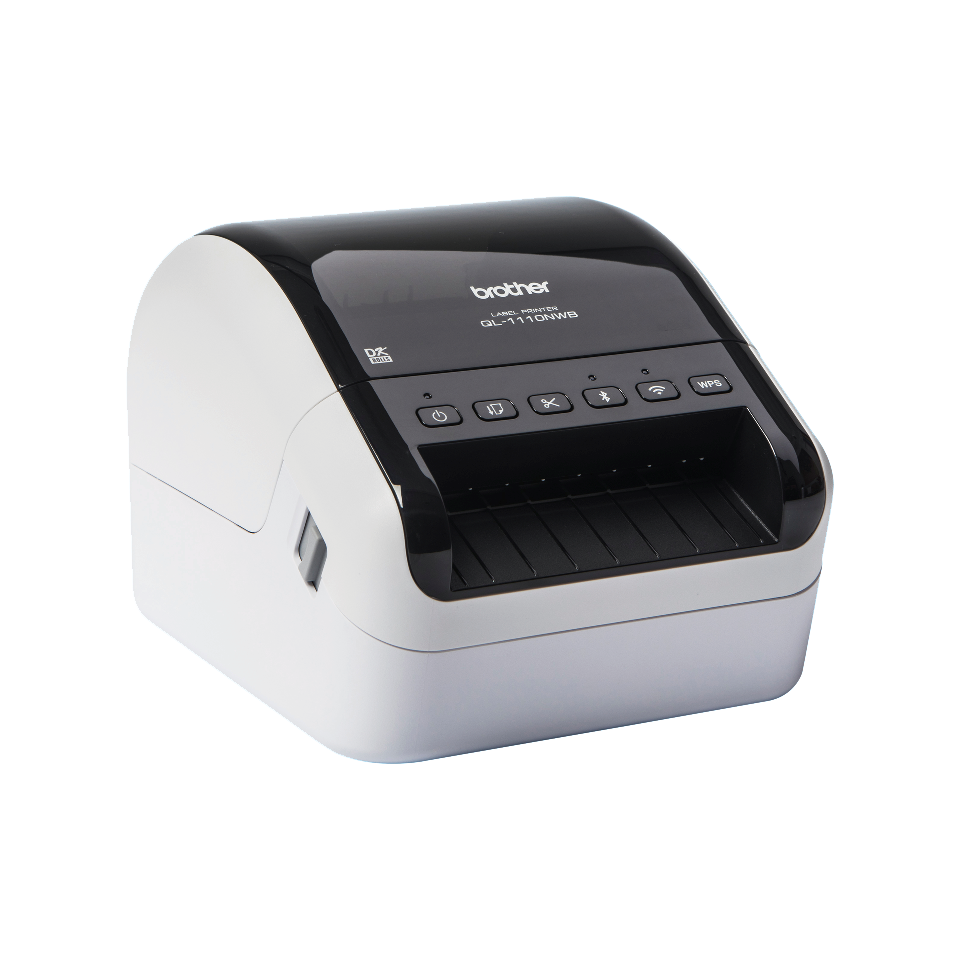

QL-1110NWB (vervangen door QL-1100NWBc)

Complete netwerk labelprinter voor magazijnen en logistieke afdelingen waar verzendlabels met barcodes tot 103,6 mm worden gebruikt.

UIT ASSORTIMENT

QL1110NWB_main

Specificaties

Algemeen

Gebruikstype Kantoor
Technologie Direct thermisch
Sjabloon uploaden van pc Ja
Geheugen Flashgeheugen 6 MB, max. 255 sjablonen
Auto 'Power off' Ja
Tape/label/papiersnijder Automatisch
Barcode protocollen Via software

Windows: CODE39, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), AztecCode, PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5), IMB

Mac: CODE39, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5), IMB

Intern
CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENTION, MSI, Aztec
Software voor Windows P-touch Editor Versie 5.2
Deze software biedt volledige flexibiliteit. Kies uit een grote reeks aan lettertypen, tekst, barcodes, afbeeldingen, kaders, clip-art en symbolen. Wees creatief en geef een persoonlijke touch aan uw labels.

P-touch Editor Lite LAN
De labelontwerp-software voor het netwerk is eenvoudig te gebruiken. Er hoeft geen printerdriver of software geïnstalleerd te worden op de individuele PC’s.

P-touch Address Book 1.3
P-touch AddressBook is een programma waarmee u adressen kunt invoeren en duurzame labels met een bepaald formaat kunt afdrukken zonder P-touch Editor te gebruiken.

BR Admin Light
Met behulp van BRAdmin Light kunnen bepaalde netwerkinstellingen worden gewijzigd.
Software voor Mac P-touch Editor Versie 5.2
Deze software biedt volledige flexibiliteit. Kies uit een grote reeks aan lettertypen, tekst, barcodes, afbeeldingen, kaders, clip-art en symbolen. Wees creatief en geef een persoonlijke touch aan uw labels.

BR Admin Light
Met behulp van BRAdmin Light kunnen bepaalde netwerkinstellingen worden gewijzigd.

Algemene verbruiksartikelen

Type DK labels en tapes
Labelbreedten 12 - 103,6 mm
Labelsoorten Voorgestanst en doorlopend

Connectiviteit

USB-poort USB 2.0 Full speed
Bedrade netwerkaansluiting 10/100Base-TX
Draadloze netwerkaansluiting IEEE 802.11 b/g/n
Wi-Fi Direct™ Direct draadloos printen zonder draadloos toegangspunt
Bluetooth Bluetooth 2.1 EDR
Bluetooth-profielen SPP(Serial Port Profile)
OPP(Object Push Profile)
BIP(Basic Imaging Profile)
HCRP(Hard Copy Cable Replacement Profile)
Beveiliging van het bedrade netwerk EAP-FAST, PEAP, EAP-TTLS, EAP-TLS, EAP-MD5

Afmetingen en gewichten

Apparaat afmeting (b x d x h) 170 x 222 x 151 mm
Apparaat gewicht 1,73 kg
Gewicht met verpakking 3 kg
Afmeting met verpakking 240 x 295 x 245 mm

In de verpakking

Geleverd met USB-kabel
Gebruikershandleiding
DK-22205 Doorlopend tape: 62 mm - Thermisch papier - zwart op wit(starterrol van 8.1 meter)
DK-11247 voorgestanste labelrol zwart op wit - 103 mm x 164 mm(starterrol van 41 labels)

Netwerk

Draadloos netwerk Draadloos LAN (802.11b/g/n)
Beveiliging van het draadloze netwerk WEP, WPA-PSK/WPA2-PSK (TKIP/AES), LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)
Bedraad netwerk 10/100 Base-TX
Beveiliging van het bedrade netwerk EAP-FAST, PEAP, EAP-TTLS, EAP-TLS, EAP-MD5

Besturingssystemen en software

Printertaal ESC/P Ja
Printerdrivers Windows Ja
Printerdrivers Macintosh Ja
Printerdrivers Linux Ja
Software Beschikbaar via download

Afdrukken

Labeldetectiesensor Ja
Max. labelbreedte 103.6 mm
Maximale afdrukhoogte 101.6 mm
Maximale afdruklengte 3000 mm
Contour-/vectorlettertypen Helsinki, Brussels, Letter Gothic
Ingebouwde lettertypen Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Resolutie (dpi) 300 x 300
Afdruksnelheid Tot 110 mm per seconde
Printertalen Raster
ESC/P
P-touch Template
ZPLII (op aanvraag)

P-touch Editor labelontwerp-software

Databasebestandscompatibilteit csv, Microsoft Excel
Datum- en tijdstempel Datum en tijd
Lettertypen Alle geïnstalleerde TrueType fonts
Kaders 154
Instellingen labellengte Labellengte 25.4 - 3000 mm
Afdrukstanden labels Horizontaal, Verticaal
Talen Engels, Deens, Nederlands, Frans, Duits, Italiaans, Noors, Portugees, Spaans, Zweeds, Fins, Tsjechisch, Pools, Hongaars, Vereenvoudigd Chinees, Russisch, Turks, Japans
Invoegtoepassing Microsoft Office (selecteren>klikken>afdrukken) Excel, Outlook, Word
Serienummering 1-5000 / A-Z / a-z
Tekstuitlijning Centreren, Uitvullen, Links, Rechts
Tekenstijlen Bold, Doorhalen, Omkeren, Cursief, Normaal, Schaduw, Lichte schaduw, Surround
Verticaal afdrukken Ja
Selecteer-klik-print functie Snel een label afdrukken vanuit populaire Microsoft Office 32bits applicaties zoals Outlook®, Word® en Excel®

P-touch Editor Lite LAN labelontwerp-software

Lettertypen Alle geïnstalleerde TrueType fonts
Kaders 10
Schermopname Ja
Verticaal afdrukken Ja

Oplossingen

SDK (Software Development Kit) Ja
AirPrint Ja
iPrint&Label Met de gratis applicatie iPrint&Label app kunt u printen vanaf uw smartphone of tablet.

Garantie & voetnoten

Garantie Standaardgarantie - 2 jaar Carry-In
